FHIR Search Performance

TL;DR

Under ideal conditions, Blaze can execute a FHIR Search query for a single code in 0.5 seconds per 1 million found resources and export the matching resources in 17 seconds per 1 million found resources, independent of the total number of resources hold.

Systems

The following systems with rising resources were used for performance evaluation:

System	Provider	CPU	Cores	RAM	SSD	Heap Mem ¹	Block Cache ²	Resource Cache ³
LEA25	on-prem	EPYC 7543P	4	32 GiB	2 TB	8 GiB	8 GiB	2.5 M
LEA36	on-prem	EPYC 7543P	8	64 GiB	2 TB	16 GiB	16 GiB	5 M
LEA47	on-prem	EPYC 7543P	16	128 GiB	2 TB	32 GiB	32 GiB	10 M
LEA58	on-prem	EPYC 7543P	32	256 GiB	2 TB	64 GiB	64 GiB	20 M
CCX42	Hetzner	EPYC 7763	16	64 GiB	360 GB	16 GiB	8 GiB	5 M
A5N46	on-prem	Ryzen 9900X	24	96 GiB	2 TB	24 GiB	24 GiB	10 M

¹ Size of the Java Heap (JAVA_TOOL_OPTIONS) ² Size of the block cache (DB_BLOCK_CACHE_SIZE) ³ Size of the resource cache (DB_RESOURCE_CACHE_SIZE)

All systems have in common that the heap mem and the block cache both use 1/4 of the total available memory each. So the Blaze process itself will only use about half the system memory available. The rest of the system memory will be used as file system cache.

Datasets

The following datasets were used:

Dataset	History	# Pat. ¹	# Res. ²	# Obs. ³	SSD Size
100k	10 years	100 k	104 M	59 M	202 GiB
1M	10 years	1 M	1044 M	593 M	1045 GiB

¹ Number of Patients, ² Total Number of Resources, ³ Number of Observations

The creation of the datasets is described in the Synthea section. The disc size is measured after full manual compaction of the database. The actual disc size will be up to 50% higher, depending on the state of compaction which happens regularly in the background.

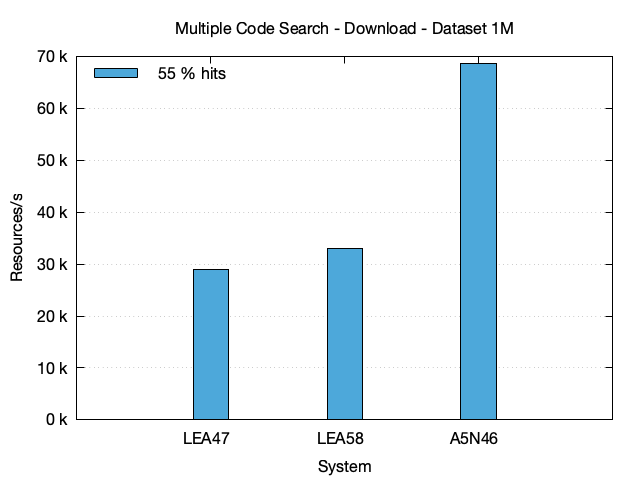

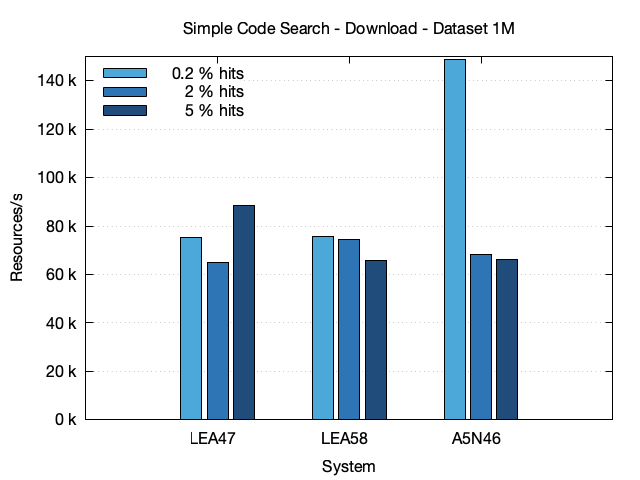

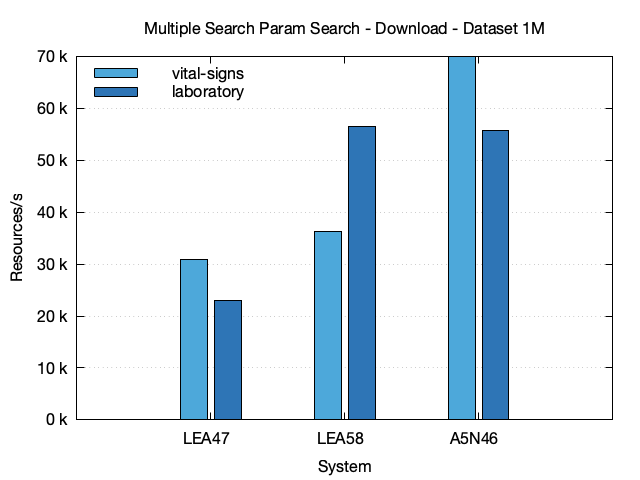

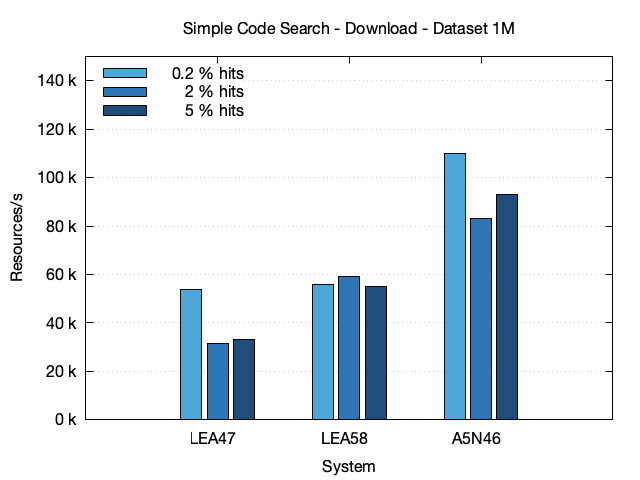

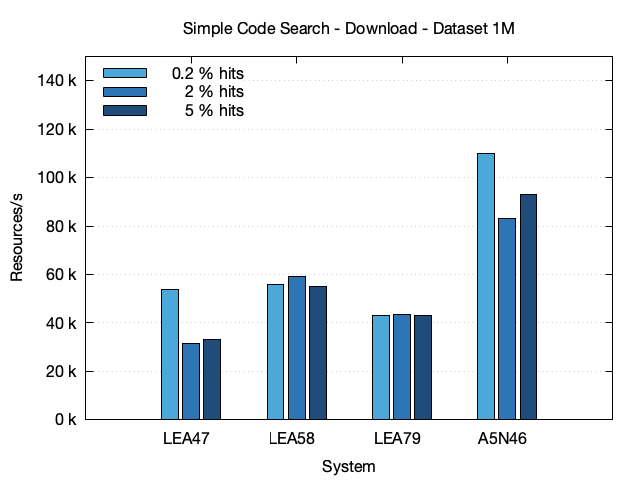

Simple Code Search

In this section, FHIR Search for selecting Observation resources with a certain code is used.

Counting

Counting is done using the following curl command:

curl -s "http://localhost:8080/fhir/Observation?code=http://loinc.org|$CODE&_summary=count"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	8310-5	115 k	0.06	0.003	0.55
LEA36	100k	55758-7	1.0 M	0.49	0.005	0.48
LEA36	100k	72514-3	2.7 M	1.28	0.022	0.46
LEA47	100k	8310-5	115 k	0.06	0.001	0.54
LEA47	100k	55758-7	1.0 M	0.50	0.010	0.49
LEA47	100k	72514-3	2.7 M	1.34	0.026	0.48
LEA58	100k	8310-5	115 k	0.07	0.002	0.57
LEA58	100k	55758-7	1.0 M	0.54	0.020	0.53
LEA58	100k	72514-3	2.7 M	1.43	0.045	0.52
LEA47	1M	8310-5	1.1 M	0.59	0.006	0.50
LEA47	1M	55758-7	10.1 M	5.45	0.182	0.53
LEA47	1M	72514-3	27.3 M	14.03	0.135	0.51
LEA58	1M	8310-5	1.1 M	0.60	0.011	0.51
LEA58	1M	55758-7	10.1 M	5.17	0.077	0.50
LEA58	1M	72514-3	27.3 M	13.77	0.244	0.50

¹ time in seconds per 1 million resources

According to the measurements the time needed by Blaze to count resources only depends on the number of hits and equals roughly in 0.5 seconds per 1 million hits.

Download of Resources

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache ².

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&_count=1000" > /dev/null"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	8310-5	115 k	1.90	0.016	16.49
LEA36	100k	55758-7	1.0 M	15.45	0.121	15.33
LEA36	100k	72514-3	2.7 M	41.09	0.530	14.95
LEA47	100k	8310-5	115 k	2.00	0.021	17.33
LEA47	100k	55758-7	1.0 M	15.99	0.147	15.87
LEA47	100k	72514-3	2.7 M	43.48	0.128	15.82
LEA58	100k	8310-5	115 k	1.96	0.039	17.04
LEA58	100k	55758-7	1.0 M	16.61	0.161	16.48
LEA58	100k	72514-3	2.7 M	43.84	0.124	15.95
LEA47	1M	8310-5	1.1 M	19.20	0.102	16.56
LEA47	1M	55758-7	10.1 M	206.52	1.478	20.36 ²
LEA47	1M	72514-3	27.3 M	673.10	3.072	24.61 ²
LEA58	1M	8310-5	1.1 M	18.95	0.075	16.34
LEA58	1M	55758-7	10.1 M	160.31	0.976	15.80
LEA58	1M	72514-3	27.3 M	498.38	9.773	18.22 ²

¹ time in seconds per 1 million resources, ² resource cache size is smaller than the number of resources returned

According to the measurements the time needed by Blaze to deliver resources only depends on the number of hits and equals roughly in 17 seconds per 1 million hits.

Download of Resources with Subsetting

In case only a subset of information of a resource is needed, the special _elements search parameter can be used to retrieve only certain properties of a resource. Here _elements=subject was used.

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache ².

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&_elements=subject&_count=1000" > /dev/null"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	8310-5	115 k	1.26	0.009	10.96
LEA36	100k	55758-7	1.0 M	9.70	0.070	9.63
LEA36	100k	72514-3	2.7 M	25.82	0.440	9.39
LEA47	100k	8310-5	115 k	1.34	0.009	11.60
LEA47	100k	55758-7	1.0 M	9.95	0.065	9.87
LEA47	100k	72514-3	2.7 M	26.76	0.284	9.73
LEA58	100k	8310-5	115 k	1.28	0.017	11.08
LEA58	100k	55758-7	1.0 M	10.55	0.209	10.47
LEA58	100k	72514-3	2.7 M	27.15	0.749	9.87
LEA47	1M	8310-5	1.1 M	13.14	0.540	11.33
LEA47	1M	55758-7	10.1 M	145.59	0.618	14.35 ²
LEA47	1M	72514-3	27.3 M	437.43	3.461	15.99 ²
LEA58	1M	8310-5	1.1 M	12.28	0.351	10.59
LEA58	1M	55758-7	10.1 M	103.67	1.057	10.22
LEA58	1M	72514-3	27.3 M	309.76	1.580	11.32 ²

¹ time in seconds per 1 million resources, ² resource cache size is smaller than the number of resources returned

According to the measurements, the time needed by Blaze to deliver subsetted Observations containing only the subject reference only depends on the number of hits and equals roughly in 11 seconds per 1 million hits.

Code and Value Search

In this section, FHIR Search for selecting Observation resources with a certain code and value is used.

Counting

Counting is done using the following curl command:

curl -s "http://localhost:8080/fhir/Observation?code=http://loinc.org|$CODE&value-quantity=lt$VALUE|http://unitsofmeasure.org|$UNIT&_summary=count"

System	Dataset	Code	Value	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	29463-7	26.8	158 k	5.81	0.061	36.75 ²
LEA36	100k	29463-7	79.5	790 k	5.94	0.019	7.52 ²
LEA36	100k	29463-7	183	1.6 M	5.88	0.030	3.71 ²
LEA47	100k	29463-7	26.8	158 k	0.85	0.006	5.38
LEA47	100k	29463-7	79.5	790 k	0.84	0.005	1.06
LEA47	100k	29463-7	183	1.6 M	0.85	0.007	0.54
LEA58	100k	29463-7	26.8	158 k	0.87	0.010	5.53
LEA58	100k	29463-7	79.5	790 k	0.87	0.014	1.10
LEA58	100k	29463-7	183	1.6 M	0.89	0.005	0.55
LEA58	1M	29463-7	26.8	1.6 M	17.89	0.397	11.45
LEA58	1M	29463-7	79.5	7.8 M	17.69	0.167	2.25
LEA58	1M	29463-7	183	15.9 M	17.53	0.110	1.10

¹ time in seconds per 1 million resources, ² block cache hit ratio is near zero

The measurements show that the time Blaze needs to count resources with two search params (code and value-quantity) is constant. In fact it depends only on the number of resources which qualify for the first search parameter which can be seen on the fixed time of 4 seconds.

Download of Resources

All measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&value-quantity=lt$VALUE|http://unitsofmeasure.org|$UNIT&_count=1000" > /dev/null"

System	Dataset	Code	Value	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	29463-7	26.8	158 k	43.24	0.048	273.51 ²
LEA36	100k	29463-7	79.5	790 k	52.30	0.181	66.24 ²
LEA36	100k	29463-7	183	1.6 M	63.81	0.057	40.32 ²
LEA47	100k	29463-7	26.8	158 k	12.84	0.016	81.22
LEA47	100k	29463-7	79.5	790 k	21.83	0.128	27.64
LEA47	100k	29463-7	183	1.6 M	32.86	0.291	20.76
LEA58	100k	29463-7	26.8	158 k	12.78	0.025	80.82
LEA58	100k	29463-7	79.5	790 k	21.95	0.193	27.80
LEA58	100k	29463-7	183	1.6 M	31.63	0.333	19.99

¹ time in seconds per 1 million resources, ² block cache hit ratio is near zero

Download of Resources with Subsetting

In case only a subset of information of a resource is needed, the special _elements search parameter can be used to retrieve only certain properties of a resource. Here _elements=subject was used.

All measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&value-quantity=lt$VALUE|http://unitsofmeasure.org|$UNIT&_elements=subject&_count=1000" > /dev/null"

System	Dataset	Code	Value	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	29463-7	26.8	158 k	42.38	0.104	268.09 ²
LEA36	100k	29463-7	79.5	790 k	48.29	0.071	61.15 ²
LEA36	100k	29463-7	183	1.6 M	55.47	0.131	35.05 ²
LEA47	100k	29463-7	26.8	158 k	11.98	0.029	75.78
LEA47	100k	29463-7	79.5	790 k	17.38	0.095	22.01
LEA47	100k	29463-7	183	1.6 M	23.44	0.177	14.81
LEA58	100k	29463-7	26.8	158 k	11.90	0.021	75.25
LEA58	100k	29463-7	79.5	790 k	17.22	0.047	21.80
LEA58	100k	29463-7	183	1.6 M	23.18	0.217	14.64

¹ time in seconds per 1 million resources, ² block cache hit ratio is near zero

Code and Patient Search

In this section, FHIR Search for selecting Observation resources with a certain code and 100 Patients is used.

Counting

Counting is done using the following curl command:

curl -s "http://localhost:8080/fhir/Observation?code=http://loinc.org|$CODE&subject=$PATIENT_REFS&_summary=count"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
A5N46	1M	8310-5	109	0.00	0.001	36.46
A5N46	1M	55758-7	1 k	0.01	0.001	4.55
A5N46	1M	72514-3	4 k	0.01	0.001	1.79

¹ time in seconds per 1 million resources

Download of Resources

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&subject=$PATIENT_REFS&_count=1000" > /dev/null"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
A5N46	1M	8310-5	109	0.00	0.005	30.57
A5N46	1M	55758-7	1 k	0.05	0.005	39.95
A5N46	1M	72514-3	4 k	0.09	0.005	20.88

¹ time in seconds per 1 million resources

Download of Resources with Subsetting

In case only a subset of information of a resource is needed, the special _elements search parameter can be used to retrieve only certain properties of a resource. Here _elements=subject was used.

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&subject=$PATIENT_REFS&_elements=subject&_count=1000" > /dev/null"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
A5N46	1M	8310-5	109	0.00	0.000	0.00 ²
A5N46	1M	55758-7	1 k	0.03	0.000	25.68
A5N46	1M	72514-3	4 k	0.06	0.000	14.46

¹ time in seconds per 1 million resources, ² to fast to be measured

Code, Date and Patient Search

In this section, FHIR Search for selecting Observation resources with a certain code, a certain date and 100 Patients is used.

Counting

Counting is done using the following curl command:

curl -s "http://localhost:8080/fhir/Observation?code=http://loinc.org|$CODE&date=2020&subject=$PATIENT_REFS&_summary=count"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
A5N46	1M	8310-5	29	0.00	0.001	126.55
A5N46	1M	55758-7	121	0.01	0.001	63.52
A5N46	1M	72514-3	420	0.01	0.001	33.34

¹ time in seconds per 1 million resources

Download of Resources

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&date=2020&subject=$PATIENT_REFS&_count=1000" > /dev/null"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
A5N46	1M	8310-5	29	0.00	0.000	0.00 ²
A5N46	1M	55758-7	121	0.01	0.000	82.64
A5N46	1M	72514-3	420	0.02	0.000	47.61

¹ time in seconds per 1 million resources, ² to fast to be measured

Download of Resources with Subsetting

In case only a subset of information of a resource is needed, the special _elements search parameter can be used to retrieve only certain properties of a resource. Here _elements=subject was used.

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "code=http://loinc.org|$CODE&date=2020&subject=$PATIENT_REFS&_elements=subject&_count=1000" > /dev/null"

System	Dataset	Code	# Hits	Time (s)	StdDev	T/1M ¹
A5N46	1M	8310-5	29	0.00	0.000	0.00 ²
A5N46	1M	55758-7	121	0.00	0.000	0.00 ²
A5N46	1M	72514-3	420	0.02	0.000	47.61

¹ time in seconds per 1 million resources, ² to fast to be measured

Simple Date Search

In this section, FHIR Search for selecting Observation resources with a certain effective year is used.

Counting

Counting is done using the following curl command:

curl -s "http://localhost:8080/fhir/Observation?date=$YEAR&_summary=count"

System	Dataset	Year	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	2013	3.1 M	2.12	0.023	0.67
LEA36	100k	2019	6.0 M	3.81	0.062	0.63
LEA47	100k	2013	3.1 M	2.13	0.068	0.68
LEA47	100k	2019	6.0 M	4.17	0.175	0.69
LEA58	100k	2013	3.1 M	2.22	0.071	0.71
LEA58	100k	2019	6.0 M	4.19	0.056	0.70
LEA47	1M	2013	31.1 M	21.28	0.439	0.68
LEA47	1M	2019	60.0 M	42.58	1.502	0.70

¹ time in seconds per 1 million resources

Download of Resources

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache ².

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "date=$YEAR&_count=1000" > /dev/null"

System	Dataset	Year	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	2013	3.1 M	52.42	0.545	16.77
LEA36	100k	2019	6.0 M	129.84	5.393	21.71 ²
LEA47	100k	2013	3.1 M	53.41	0.377	17.08
LEA47	100k	2019	6.0 M	107.15	0.116	17.92
LEA58	100k	2013	3.1 M	53.07	0.090	16.98
LEA58	100k	2019	6.0 M	100.73	0.473	16.84
LEA47	1M	2013	31.1 M	991.28	12.329	31.90 ²
LEA47	1M	2019	60.0 M	2083.44	31.983	34.69 ²

¹ time in seconds per 1 million resources, ² resource cache size is smaller than the number of resources returned

Download of Resources with Subsetting

In case only a subset of information of a resource is needed, the special _elements search parameter can be used to retrieve only certain properties of a resource. Here _elements=subject was used.

Most measurements are done after Blaze is in a steady state with all resources to download in it's resource cache in order to cancel out resource load times from disk or file system cache ².

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Observation -q "date=$YEAR&_elements=subject&_count=1000" > /dev/null"

System	Dataset	Year	# Hits	Time (s)	StdDev	T/1M ¹
LEA36	100k	2013	3.1 M	32.07	0.278	10.26
LEA36	100k	2019	6.0 M	79.92	4.179	13.36
LEA47	100k	2013	3.1 M	31.99	0.061	10.23
LEA47	100k	2019	6.0 M	66.33	0.045	11.09
LEA58	100k	2013	3.1 M	32.43	0.340	10.37
LEA58	100k	2019	6.0 M	62.14	0.488	10.39
LEA47	1M	2013	31.1 M	673.36	10.199	21.67 ²
LEA47	1M	2019	60.0 M	1516.90	0.482	25.25 ²

¹ time in seconds per 1 million resources, ² resource cache size is smaller than the number of resources returned

Patient Date Search

In this section, FHIR Search for selecting Patient resources with a certain birth date is used.

Counting

Counting is done using the following curl command:

curl -s "http://localhost:8080/fhir/Patient?birthdate=$DATE&_summary=count"

System	Dataset	Date	# Hits	Time (s)	StdDev	T/1M ¹
LEA47	1M	gt1998-04-10	227 k	0.38	0.005	1.68
LEA47	1M	ge1998-04-10	227 k	0.40	0.007	1.74
LEA47	1M	lt1998-04-10	773 k	0.58	0.017	0.75
LEA47	1M	le1998-04-10	773 k	0.60	0.005	0.78

Download of Resources

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Patient -q "birthdate=$DATE&_count=1000" > /dev/null"

System	Dataset	Date	# Hits	Time (s)	StdDev	T/1M ¹
LEA47	1M	gt1998-04-10	227 k	7.77	0.033	34.17
LEA47	1M	ge1998-04-10	227 k	7.91	0.056	34.77
LEA47	1M	lt1998-04-10	773 k	26.85	0.065	34.74
LEA47	1M	le1998-04-10	773 k	27.73	0.012	35.88

Download of Resources with Subsetting

In case only a subset of information of a resource is needed, the special _elements search parameter can be used to retrieve only certain properties of a resource. Here _elements=id was used.

Download is done using the following blazectl command:

blazectl download --server http://localhost:8080/fhir Patient -q "birthdate=$DATE&_elements=id&_count=1000" > /dev/null"

System	Dataset	Date	# Hits	Time (s)	StdDev	T/1M ¹
LEA47	1M	gt1998-04-10	227 k	3.15	0.016	13.85
LEA47	1M	ge1998-04-10	227 k	3.09	0.108	13.58
LEA47	1M	lt1998-04-10	773 k	9.90	0.249	12.81
LEA47	1M	le1998-04-10	773 k	9.73	0.073	12.59

Used Dataset

The dataset used is generated with Synthea v3.1.1. The resource generation is described here.

Controlling and Monitoring the Caches

The size of the resource cache can be set by its respective environment variable DB_RESOURCE_CACHE_SIZE. The size denotes the number of resources. Because one has to specify a number of resources, it's important to know how many bytes a resource allocates on the heap. The size varies widely. Monitoring of the heap usage is critical.

Monitoring

Blaze exposes a Prometheus monitoring endpoint on port 8081 per default. The ideal setup would be to attach a Prometheus instance to it and use Grafana as dashboard. But for simple, specific questions about the current state of Blaze, it is sufficient to use curl and grep.

Java Heap Size

The current used bytes of the various generations of the Java heap is provided in the jvm_memory_pool_bytes_used metric. Of that generations, the G1 Old Gen is the most important, because cached resources will end there. One can use the following command line to fetch all metrics and grep out the right line:

curl -s http://localhost:8081/metrics | grep jvm_memory_pool_bytes_used | grep Old
jvm_memory_pool_bytes_used{pool="G1 Old Gen",} 8.325004288E9

Here the value 8.325004288E9 is in bytes and E9 means GB. So we have 8.3 GB used old generation here which makes out most of the total heap size. So if you had configured Blaze with a maximum heap size of 10 GB, that usage would be much like a healthy upper limit.

Resource Cache

The resource cache metrics can be found under keys starting with blaze_db_cache. Among others there is the resource-cache. The metrics are a bit more difficult to interpret without a Prometheus/Grafana infrastructure, because they are counters starting Blaze startup. So after a longer runtime, one has to calculate relative differences here. But right after the start of Blaze, the numbers are very useful on its own.

curl -s http://localhost:8081/metrics | grep blaze_db_cache | grep resource-cache
blaze_db_cache_hits_total{name="resource-cache",} 869000.0
blaze_db_cache_loads_total{name="resource-cache",} 13214.0
blaze_db_cache_load_failures_total{name="resource-cache",} 0.0
blaze_db_cache_load_seconds_total{name="resource-cache",} 234.418864426
blaze_db_cache_evictions_total{name="resource-cache",} 0.0

Here the important part would be the number of evictions. As long as the number of evictions is still zero, the resource cache did not overflow already. It should be the goal that most CQL queries or FHIR Search queries with export should fit into the resource cache. Otherwise, if the number of resources of a single query do not fit in the resource cache, the cache has to be evicted and filled up during that single query. Especially if you repeat the query, the resources needed at the start of the query will be no longer in the cache and after they are loaded, the resources one needs at the end of the query will be also not in the cache. So having a cache size smaller as needed to run a single query doesn't give any performance benefit.
